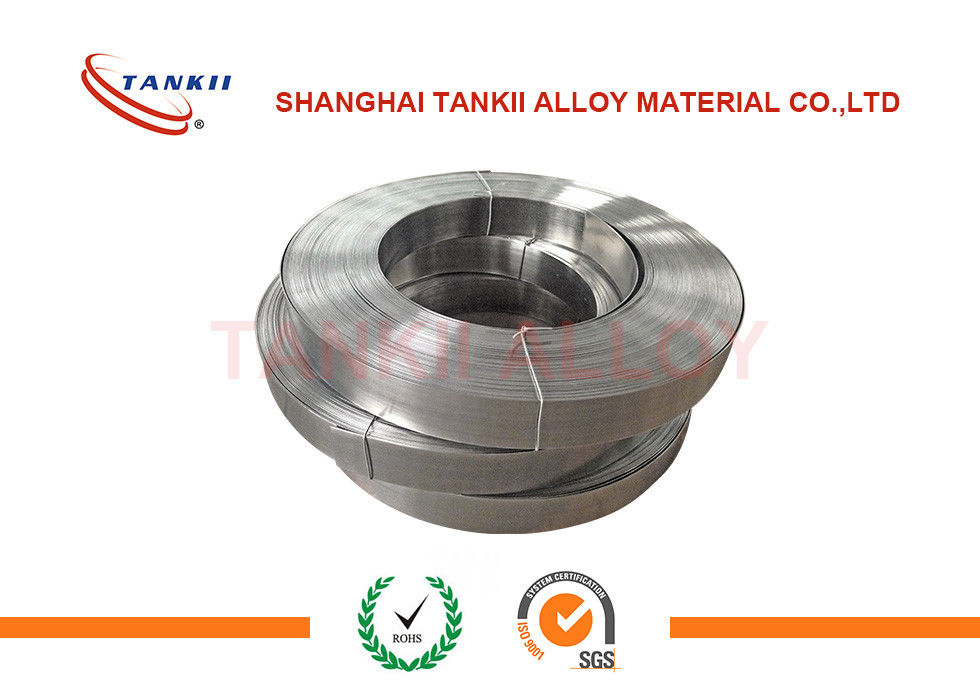

Resistance Heating FeCrAl Alloy

Resistance Heating FeCrAl Alloy

Resistance Heating FeCrAl Alloy

Product Details:

Place of Origin: China
Brand Name: TANKII
Certification: ISO9001
Model Number: 0Cr25Al5

Payment & Shipping Terms:

Minimum Order Quantity: 20kg
Price: negotiation
Packaging Details: On Spool,In Coil
Delivery Time: 5-10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20, 000kg/month
Contact Now
Detailed Product Description

  FeCrAl 0Cr25Al5 Fecral Wire Resistance Heating Wire for Civil Heating Appliance



Resistance heating wire includes pure nickel, chromel alloy, Fe-Cr-Al alloy and copper nickel alloy. Resistance heating wire is produced by smelting, steel rolling, forging, annealing, drawing, surface treatment, resistance control test, etc.



It is widely used for making heating equipment like industrial furnace, civil heating appliance, various electrical resistors and locomotive braking resistor.

  •     Name: Heating resistance wire
  •     Type: Ni-Cr wire, pure Nickel, Chromel alloy, Fe-Cr-Al alloy, Copper nickel alloy, etc.
  •     Color: bright, oxidized
  •     Package: Carton or wooden case as demanded
  •     Application: making heating equipment like industrial furnace, civil heating appliance, various electrical resistors and locomotive braking resistor
  •     Place of Origin: Jiangsu, China (Mainland)
  •     Eco-friendly: Yes
  •     MOQ: 1kgs
  •     Trade term: FOB, EXW, CIF, CFR
  •     Payment term: T/T, Western Union, L/C





1.Nichrome heating wire
2.Factory direct supply with best price
3.80/20 heating electric wire Nichrome Cr20Ni80 heating wire



1. FeCrAl heating wireOCr27AL7Mo2, OCr21AL6Nb, OCr21AL6, OCr25AL5, OCr23AL5, OCr21AL4, 1Cr13AL4



2. Nichrome heating wire: Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30.



3. Product forms and size range



Round wire

0.010-12 mm (0.00039-0.472 inch)  Other sizes are available on request.

Ribbon (flat wire)

Thickness: 0.023-0.8 mm (0.0009-0.031 inch)

Width: 0.038-4 mm (0.0015-0.157 inch)

Width/thickess ratio max 60, depending on alloy and tolerance

Other sizes are available on request.



4. Stranded wire

Some resistance heating alloys and pure nickel are available as stranded wire.



5. Marking

Each spool/package of wire is supplied with a label or tag showing alloy type, nominal size, gross and net weight, resistance W/m (W/ft), charge number and a reference number.






0Cr25Al5
Chemical Content, %

C

P

S

Mn

Si

Cr

Ni

Al

Fe

Other

Max

0.06

0.025

0.020

0.50

≤0.6

23.0-26.0

≤0.60

4.5-6.5

Balance

-




Mechanical Properties

Max Continuous Service Temperature:
Resisivity 20℃:
Density:
Thermal Conductivity:
Coefficient of Thermal Expansion:
Melting Point:
Elongation:
Micrographic Structure:
Magnetic Property:

1300℃
1.42+/-0.07ohm mm2/m
7.25g/cm3
46.1 KJ/m·h·℃
15.0×10-6/℃ (20℃~1000℃)
1500℃
Min 12%
Ferrite
magnetic




Temperature Factor of Electrical Resistivity

20℃

100℃

200℃

300℃

400℃

500℃

600℃

1.000

1.002

1.005

1.008

1.013

1.021

1.030



700℃

800℃

900℃

1000℃

1100℃

1200℃

1300℃

1.038

1.040

1.042

1.044

1.046

1.047

1.047
